SPARTUS®
EasyMIG 185
LIGHT AND PORTABLE MIG 3 IN 1

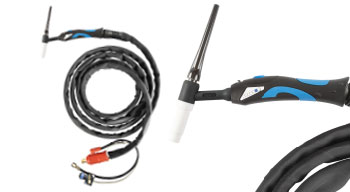

Possibility to weld with a TIG torchwith a microswitch
Technical parameters
| Input | ~1× 230V ± 10% 50 / 60 Hz |
| Welding current MIG [A] | 40 – 180 |
| Duty cycle MIG [%] | 35 |
| MIG PARAMETERS | |
| Output working voltage MIG [V] | 16 – 23 |
| Wire feeding speed [m/min] | 1.5 – 16.5 |
| Wire feeder | builid-in, 2 - roll gear |
| Welding wire spool [mm] | ≤ 5[kg], Ø200 |
| Wire diameter Ø [mm] | 0.6 / 0.8 / 1.0 |
| CuSi3 Brazing |  |
| Inductance control | Wave Control |
| 2T/4T switch | |
| TIG PARAMETERS | |
| TIG DC welding | |
| Welding current TIG [A] | 10 – 180 |
| Duty cycle TIG [%] | 35 |
| Down Slope [s] | 0 - 10 |
| 2T/4T switch | |
| Arc ignition | Lift |
| MMA PARAMETERS | |
| Coated electrode MMA welding | |
| Welding current MMA [A] | 10 – 180 |
| Duty cycle MMA [%] | 35 |
| Arc Force | 0 - 10 |
| OTHER | |
| Max. current consumpiton 230V [A] | MIG 36.8 / MMA 42.9 / TIG 28.8 |
| Power factor (cosφ) | 0.6 |
| Efficiency η [%] | 85 |
| Insulation class | H |
| Protection class | IP21 |
| Weight [kg] | 15 |
| Dimensions [mm] | 535 × 230 × 410 |
Description:

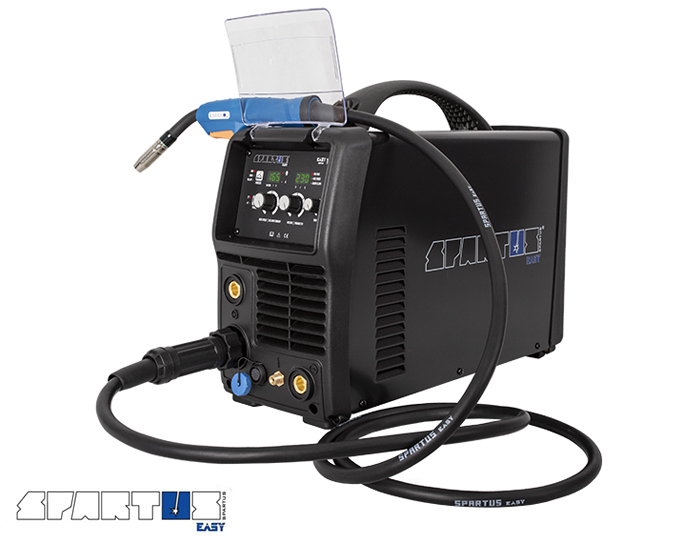

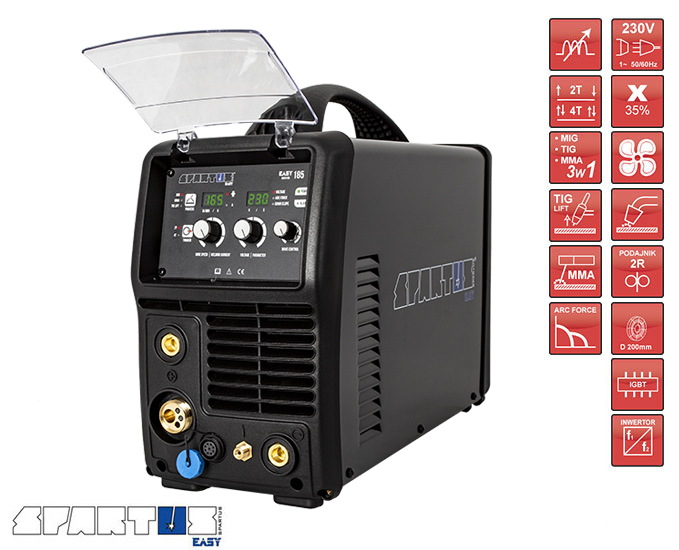

SPARTUS® EasyMIG 185 is a modern inverter, semi-automatic welding unit. It supports welding by means of a consumable electrode shielded by inert (MIG) or active (MAG) gases, welding with coated electrode (MMA) and tungsten inert gas (TIG Lift) welding with scratch ignition. The maximum welding current for all three techniques is 180A. The unit is powered from a single-phase 230V network.

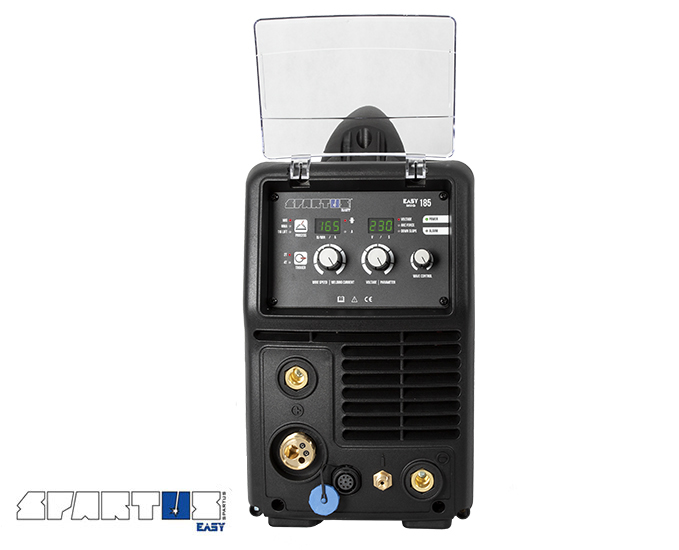

The user-friendly control panel allows for instant adjustment of welding parameters depending on the selected technique:
• MIG/MAG welding techniques - stepless adjustment of welding voltage, wire feed rate and inductance.
• MMA welding technique - stepless adjustment of current intensity and Arc Force values (0 - 10)
• TIG Lift - stepless adjustment of welding current intensity and down slope values (0 - 10)

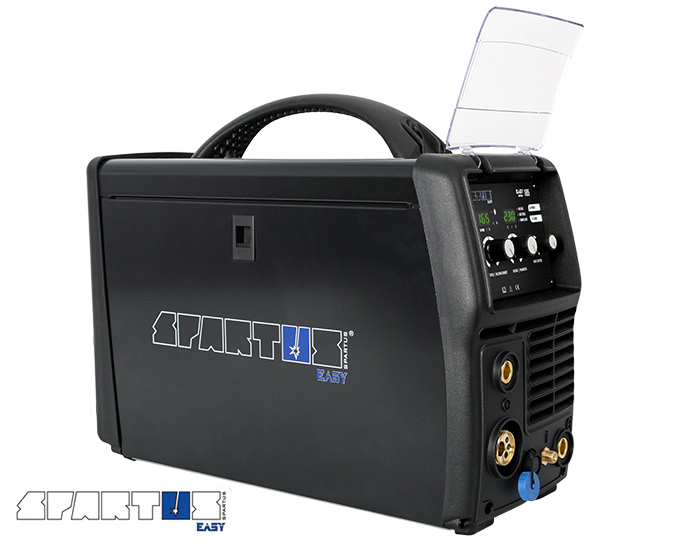

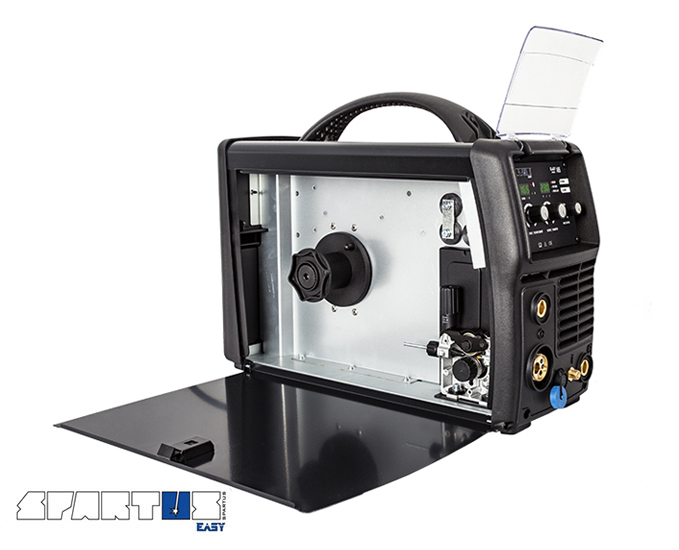

Ultralight and portable EasyMIG welding unit. It is equipped with a two-roller welding wire feeder. In addition, thanks to a capability of polarity change, it supports gas-free self-shielding wire welding.
Exemplary applications: workshop, portable repair, automotive sector.

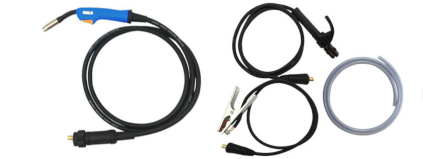

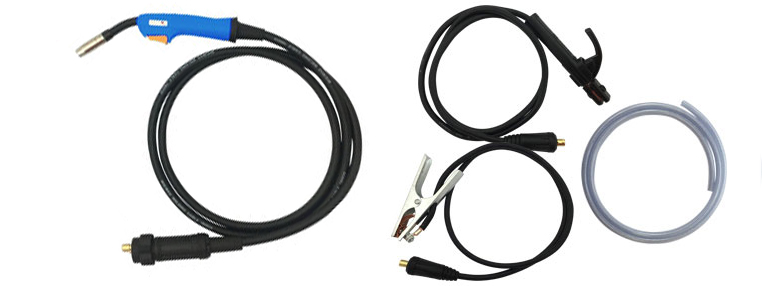

Package equipment:
EasyMIG 185 device
MIG gun SPARTUS® SPE 150 3m
Electrode holder
Work clamp
Gas hose with bands
User’s manual
Package price [EUR]:
