Auto darkening welding helmet SPARTUS Pro 330XT

1 / 7

Technical parameters

Application Arc welding: MMA, TIG, MIG/MAG
Cartridge size 122 x 125 x 9 mm
Active field of view 100 x 65 mm
Shading (standby) DIN 4
Sensors 4
Filter optical class 1/1/1/1
Variable welding shades (operating) DIN 4 - 8 or DIN 9 - 13
UV/IR protection degree to DIN 16
Light to dark switching time 1/30 000 s
Delay control light to dark switching time 0.3 - 0.9s
Powered Solar cells, battery
Grinding tak
Weight 490g
Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge
Helmet SPARTUS Pro 330XT080-10-330XTcena
External polycarbonate shield 125×106mm082-125-106cena
Internal polycarbonate shield 108×68mm082-108-068cena


SPARTUS® Pro 330XT helmet have been designed to protect welder’s eyes and face against the harmful radiation and weld spatters during welding: TIG, MIG/MAG, MMA. Additionally devices have a function of grinding.

SPARTUS® helmet are equipped with automatic welding filter with manual protection level adjustment. Built-in 4 sensors ensures maximum filter sensitivity. Filter includes possibility of regulation: filter darkening grade, time of filter brightening and filter sensitivity. The preview of the view is presented in real colors (true color).

Helmet are made of tough polyamide (Nylon). Adjusted headband enables easy adaptation to welder’s needs.

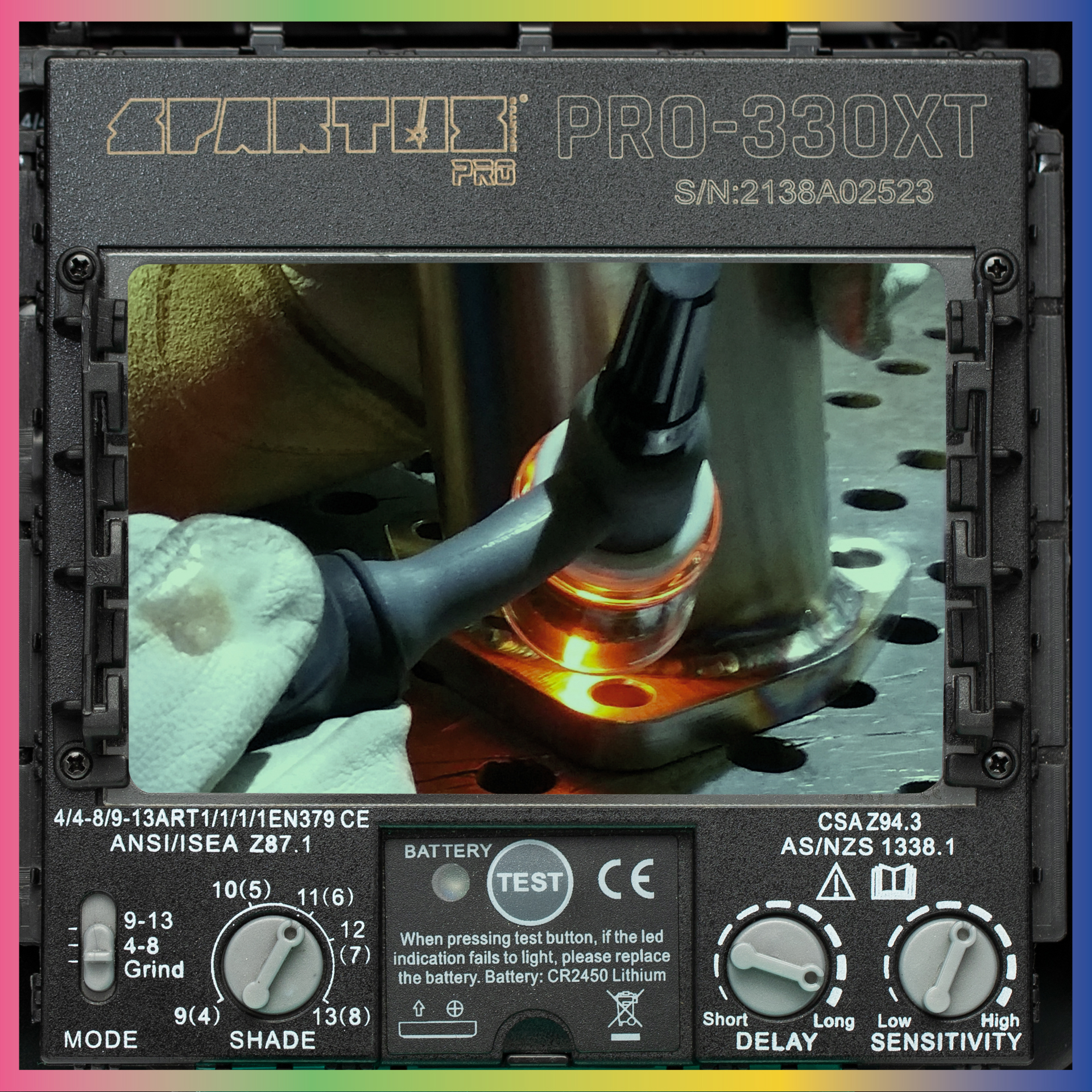

Features of the 330XT automatic filter:

Highest optical class 1/1/1/1

Smooth adjustment of shading of DIN 4 - 8 or DIN 9 - 13

Smooth adjustment of photosensors sensitivity

Smooth adjustment of filter’s brightening

TEST button

Active field of view 100x65mm

Helmet SPARTUS Pro 330XT with hard hat:

Health and safety regulations require in many situations using of a protective helmet to cover the operator's head from injuries.
The situations include for example: the works on bridges, on steel constructions, in large tanks as well as renovation and assembly works with boilers and their installations.
Welding protection helmet SPARTUS® Pro 330XT is connected via a special adapter with hard hat. It provides increased protection of the welder from dangerous potential consequences of head injuries and ensures high comfort during long hours of use.
Person, who uses protecting welding helmet with hard hat, meets stringent health and safety requirements in the workplace.

Welding helmet SPARTUS Pro 330XT with hard hat080-10-330XTK
