EasyMIG315

SPARTUS®
EasyMIG 315



SYNERGIC 4-ROLL MIG

1 / 8

Technical parameters

Input ~3× 400V ± 10% 50 / 60 Hz
Welding current MIG [A] 50 – 300
Duty cycle MIG [%] 60
MIG PARAMETERS
Output working voltage MIG [V] 16,5 – 29
Wire feeder builid-in, 4 - roll gear
Wire feeding speed [m/min] 2 – 12,5
Wire diameter Ø [mm] Steel 0.8 / 1.0 / 1.2
Aluminum 1.0 / 1.2
Welding wire spool [mm] ≤ 15[kg], Ø200/300
Inductance control tak
Wire feeding test tak
2T/4T switch tak
Synergy tak Easy
Welding polarity change tak
TIG PARAMETERS
TIG welding tak
Welding current TIG [A] 10 – 300
Duty cycle TIG [%] 60
MMA PARAMETERS
MMA welding tak
Welding current MMA [A] 10 – 250
Hot Start 0 – 10
Arc Force 0 – 10
VRD tak
Duty cycle MMA [%] 60
OTHER
Max. current consumpiton [A] MIG 17 / TIG 14 / MMA 13
Efficiency η [%] 85
Power factor (cosφ) 0,93
Insulation class H
Protection class IP21S
Weight [kg] 19
Dimensions [mm] 570 × 265 × 460
Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

SPARTUS® EasyMIG 315 are high-end semi-automatic welding machine made of inverter technology using IGBTs, which allow welding with a fusible electrode in an inert and active gas shield (MIG/MAG), welding with coated electrode (MMA) and TiG Lift welding with ignition arc by rubbing.
In addition, the device allow welding with self-shielding wire without gas, thanks to the possibility of changing the welding polarity.
Maximum welding current for MIG/MAG/TIG methods is 300A for MMA welding method is: 250A.
It is powered from a three-phase 400V power source. The device are equipped with synergistic programs for MIG / MAG welding with steel wires in the diameter range 0.8 / 1.0 / 1.2mm. In addition, welders have the ability to manually adjust the set parameters.

Modern technological solutions made it possible to equip the device with a number of functions supporting the welding process:

2T / 4T – selection of one of two operating modes (MIG/MAG),

Inductance – precise arc dynamics adjustment Wave Control ensures full control over the welding arc: it allows to reduce the amount of welding splashes and controls the width and depth of fusion,

Burn Back – precise adjustment of welding wire burning speed allows limit a risk of sticking the welding wire to the contact tip,

Slow Feed – so called gentle start-up of the wire feeder, recommended especially during welding with high amperage and high speed of wire feed. Smooth start of wire feed eliminates the risk of welding defects at the beginning of the weld,

Hot Start – for easier electrode ignition (MMA),

Arc Force – for easier welding in forced positions (MMA),

Spool Gun – lightweight and durable welding gun with built-in wire feeder designed for MIG/ MAG welding,

VRD – lower no-load voltage (MMA).

High class four-roll wire feeder, ensures stable feeding of steel, stainless steel and aluminum welding wire. Stable output parameters guarantee appropriate weld quality.

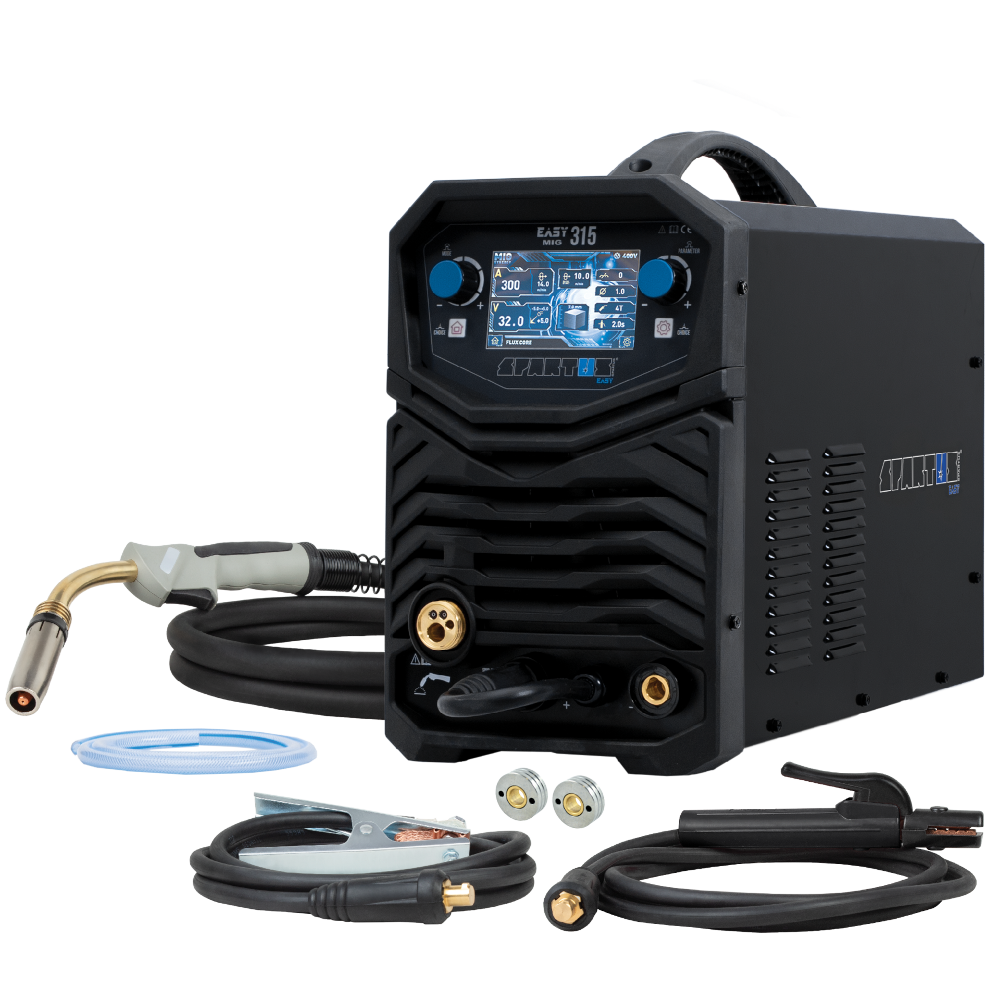

Package equipment:

EasyMIG 315

MIG gun SPE 360 3m

Additionally 2 x wire guide roller 1.0-1.2V fi30

Electrode holder

Work clamp

Gas hose with bands

User’s manual

Package price [EUR]:
cena
